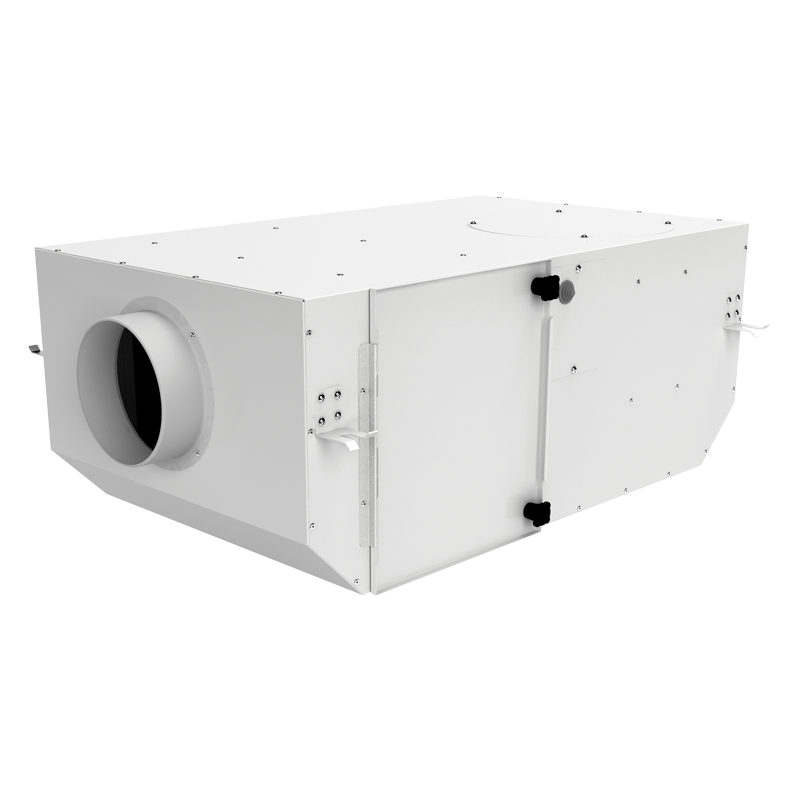

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Iso Box-F (V2) / Iso Box-F 150 G4/Carbon
| Unit of measurement | Iso Box-F 150 G4/Carbon | |
| Phases | - | 1 |
| Maximum supply voltage | V | 230 |
| Minimum supply voltage | V | 230 |
| Power supply frequency | Hz | 50 |
| Maximum airflow | m³/h | 440 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Plastic |

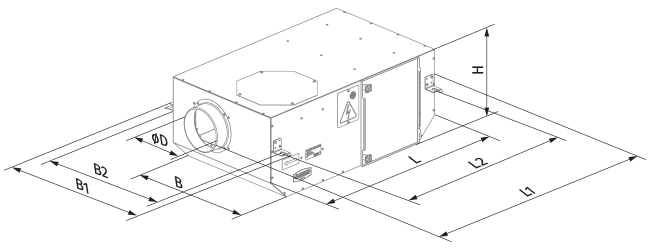

| ∅ D | L | H | B | L1 | B1 | L2 | B2 |
|---|---|---|---|---|---|---|---|
| 150 | 735 | 300 | 440 | 835 | 533 | 680 | 483 |
