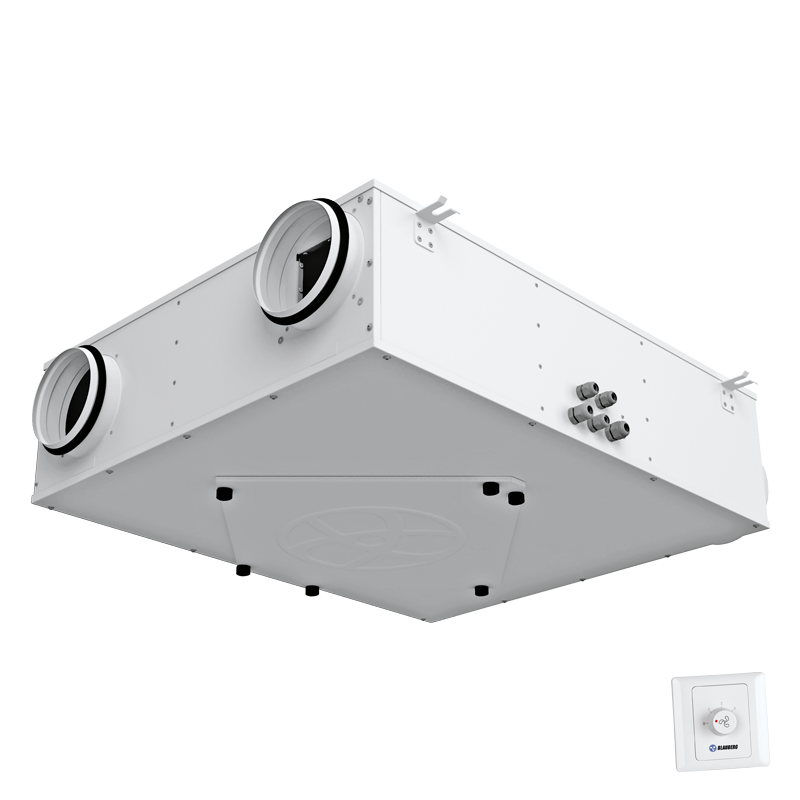

Blauberg KOMFORT ERV D 200 L S3

Suspended heat and energy recovery air handling units

	Unit of measurement	KOMFORT ERV D 200 L S3
Phases	-	1
Maximum supply voltage	V	230
Minimum supply voltage	V	230
Power supply frequency	Hz	50
Maximum airflow	m³/h	280
Heat recovery efficiency, max	%	87
Heat exchanger type	-	Cross flow
Heat exchanger material	-	Enthalpy
Weight	kg	24
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-15
Ambient air temperature max	°С	40
Ingress protection rating	-	IP22
Ingress protection rating of the drive	-	IP44
Ambient air humidity max	%	60

Trademark	Blauberg
Model	KOMFORT ERV D 200 L S3
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-56.7	A+	-21.6	D	1.1	G
Type of ventilation unit	Bidirectional
Type of drive installed	Variable speed
Type of heat recovery system	Recuperative
Thermal efficiency of heat recovery (%)	79
Maximum flow rate (m³/h)	220
Electric power input (W)	132
Reference flow rate (m³/s)	0.054
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.646
Control typology	Manual control
Maximum internal leakage rates (%)	2.7
Maximum external leakage rates (%)	2.7
Sound power level (dB(A))	49
Declared typology	RVU BVU
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	1391		854		809
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	8278		4231		1913
