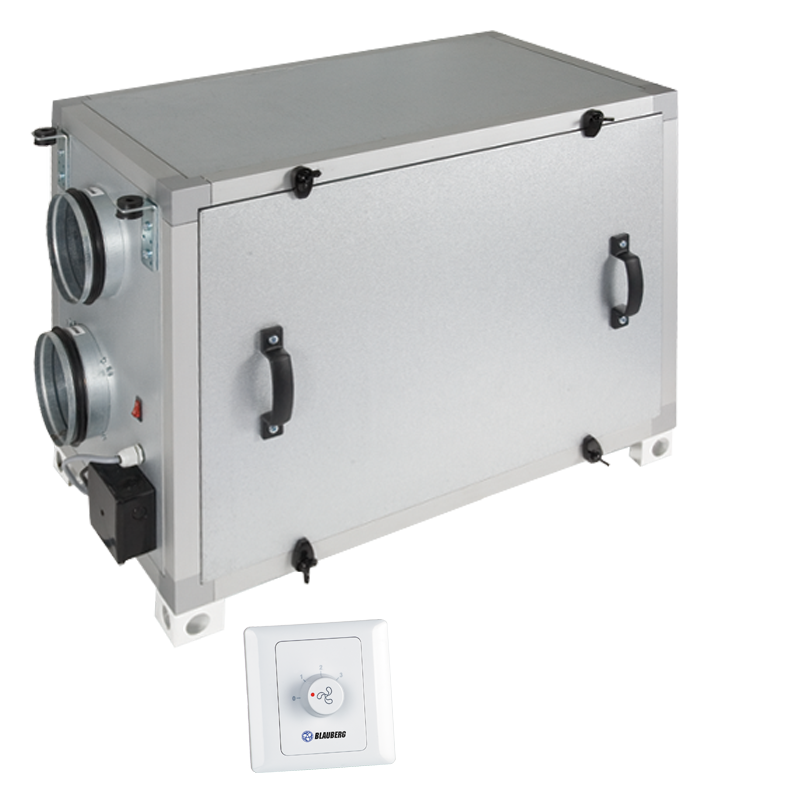

/ Product catalogue / Air handling units / Crossflow commercial AHU / Horizontal Units / KOMFORT L / KOMFORT L 530
| Unit of measurement | KOMFORT L 530 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Maximum airflow | m³/h | 530 |
| Heat recovery efficiency, max | % | 88 |
| Heat exchanger type | - | Cross flow |
| Heat exchanger material | - | Polystyrene |
| Weight | kg | 49 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 50 |
| Ingress protection rating | - | IP22 |
| Ambient air humidity max | % | 80 |
| Ingress protection rating of the drive | - | IP44 |
| Trademark | Blauberg | |||||
| Model | KOMFORT L 530 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -48.8 | A+ | -18.2 | E | 1.9 | G | |
| Type of ventilation unit | Bidirectional | |||||
| Type of drive installed | Multi-speed | |||||
| Type of heat recovery system | Recuperative | |||||
| Thermal efficiency of heat recovery (%) | 64 | |||||
| Maximum flow rate (m³/h) | 470 | |||||
| Electric power input (W) | 300 | |||||
| Reference flow rate (m³/s) | 0.091 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.578 | |||||
| Control typology | Manual control | |||||
| Maximum internal leakage rates (%) | 2.7 | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU BVU | |||||
| Sound power level (dB(A)) | 57 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 1336 | 799 | 754 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 7343 | 3754 | 1697 | ||||

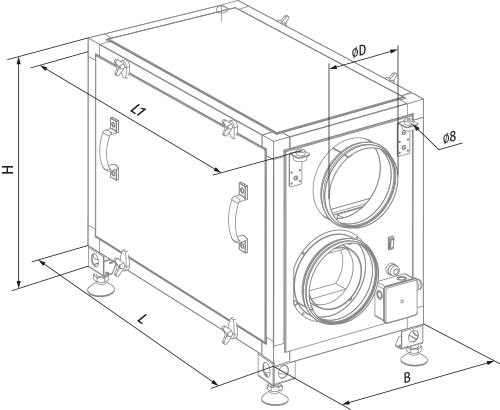

| ØD | B | H | L | L1 |
|---|---|---|---|---|
| 159 | 416 | 603 | 722 | 768 |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 436x215x48 G4 |
|
G4 panel filter |
| Blauberg SB C4 300/384 |
