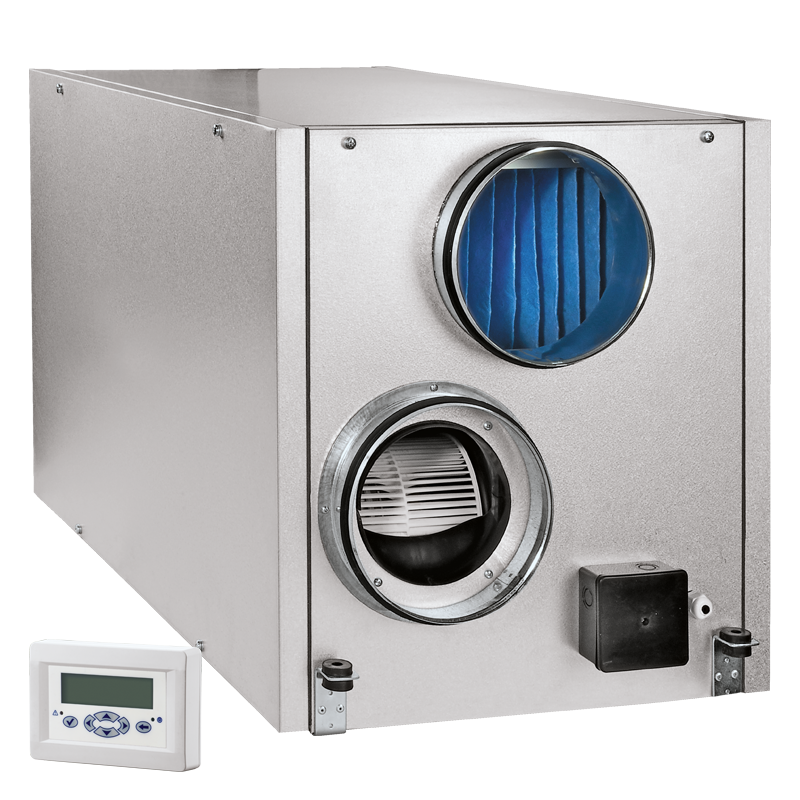

Blauberg KOMFORT LE 530-4

Heat recovery air handling units

	Unit of measurement	KOMFORT LE 530-4
Phases	-	1
Minimum supply voltage	V	230
Maximum supply voltage	V	230
Power supply frequency	Hz	50/60
Power of electrical reheater	W	4000
Maximum airflow	m³/h	530
Heat recovery efficiency, max	%	88
Heat exchanger type	-	Cross flow
Heat exchanger material	-	Polystyrene
Weight	kg	49
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-25
Ambient air temperature min	°С	1
Ambient air temperature max	°С	40
Ingress protection rating	-	IP22
Ambient air humidity max	%	80
Ingress protection rating of the drive	-	IP44

Trademark	Blauberg
Model	KOMFORT LE 530-4
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-48.8	A+	-18.2	E	1.9	G
Type of ventilation unit	Bidirectional
Type of drive installed	Multi-speed
Type of heat recovery system	Recuperative
Thermal efficiency of heat recovery (%)	64
Maximum flow rate (m³/h)	470
Electric power input (W)	300
Reference flow rate (m³/s)	0.091
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.602
Control typology	Manual control
Maximum internal leakage rates (%)	2.7
Maximum external leakage rates (%)	2.7
Declared typology	RVU BVU
Sound power level (dB(A))	57
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	1336		799		754
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	7343		3754		1697

Datasheet

KOMFORT LЕ - data sheet

1.24 Mb

Datasheet

KOMFORT LE530-4 - energy label

55 Kb

Datasheet

KOMFORT LE530-4 - specification

35 Kb

Manual

KOMFORT LЕ - user's manual

3.05 Mb

Manual

Control panel S16 - operation manual

2.47 Mb


KOMFORT LE 530-4 - image 1

738 Kb

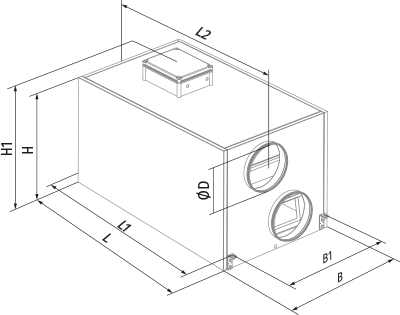

ØD	B	B1	H	H1	L	L1	L2
159	497	403	554	–	954	996	1057
