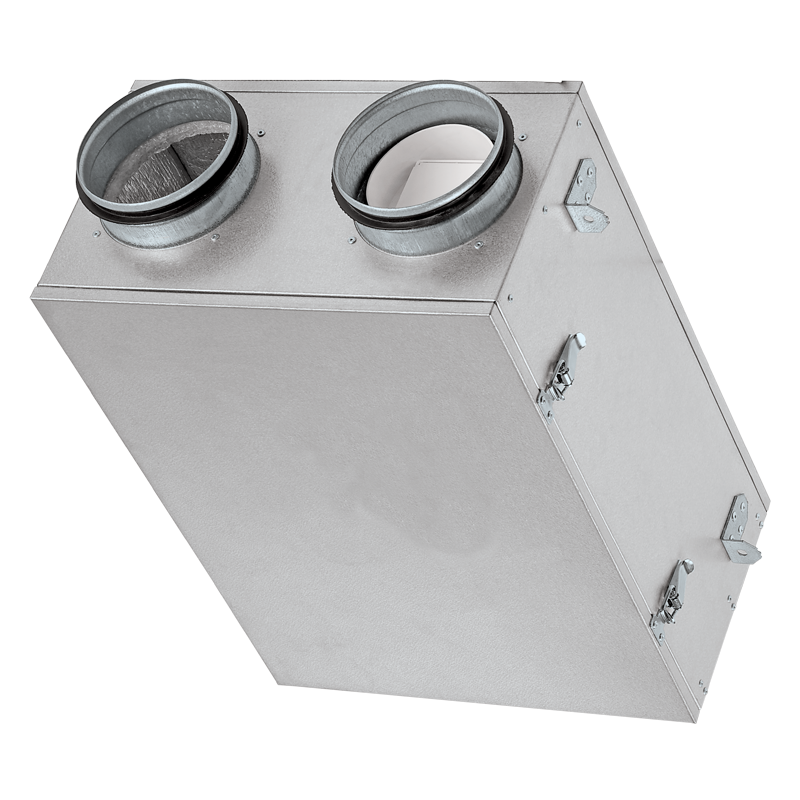

/ Product catalogue / Air handling units / Crossflow residential AHU / Suspended Units / KOMFORT Ultra D 105 / KOMFORT Ultra D 105
| Unit of measurement | KOMFORT Ultra D 105 | |||
| Speed | - | 1 | 2 | 3 |
| Phases | - | 1 | ||
| Minimum supply voltage | V | 230 | ||
| Maximum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 50 | ||
| Maximum airflow | m³/h | 55 | 74 | 100 |
| Heat recovery efficiency, max | % | 72 | ||
| Heat exchanger type | - | Cross flow | ||
| Heat exchanger material | - | Enthalpy | ||
| Weight | kg | 10 | ||
| Transported air temperature (max) | °С | 40 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ambient air temperature min | °С | 1 | ||
| Ambient air temperature max | °С | 40 | ||
| Ingress protection rating | - | IP22 | ||
| Ambient air humidity max | % | 60 | ||
| Ingress protection rating of the drive | - | IP44 | ||
| Trademark | Blauberg | |||||
| Model | KOMFORT Ultra D 105 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -55.3 | A+ | -23 | D | -1.8 | F | |
| Type of ventilation unit | Bidirectional | |||||
| Type of drive installed | Multi-speed | |||||
| Type of heat recovery system | Recuperative | |||||
| Thermal efficiency of heat recovery (%) | 70 | |||||
| Maximum flow rate (m³/h) | 106 | |||||
| Electric power input (W) | 56 | |||||
| Reference flow rate (m³/s) | 0.021 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.512 | |||||
| Control typology | Manual control | |||||
| Maximum internal leakage rates (%) | 2.7 | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU BVU | |||||
| Sound power level (dB(A)) | 61 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 1224 | 687 | 642 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 7717 | 3945 | 1784 | ||||

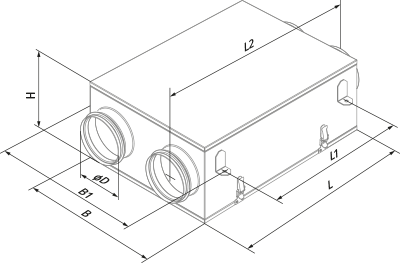

| ØD | B | B1 | H | L | L1 | L2 |
|---|---|---|---|---|---|---|
| 125 | 374 | 404 | 224 | 497 | 397 | 595 |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 240x202x8 G4 |
|
G4 panel filter |
| Blauberg SB C4 200/190 |
